Premium PTFE Belting
Premium
PTFE Coated Fiberglass
Belting
Taconic premium PTFE coated fiberglass belting is engineered for demanding conveyor applications requiring superior release, chemical resistance, heat resistance, and long service life.
Premium belting uses a heavier PTFE coating than standard constructions, providing a smoother release surface and improved process performance in high-temperature conveying and sealing environments.
Available in premium smooth and premium textured constructions, these belts support applications where release, durability, dimensional stability, and repeatable production performance are critical.
Performance Advantages
Why choose this
belt construction?
High PTFE Content
A higher PTFE-to-substrate ratio helps improve release, surface coverage, and durability.
Superior Release
Smooth premium surfaces support non-stick conveying, sealing, and transfer applications.
Chemical Resistance
PTFE coating resists many process chemicals while maintaining dimensional stability.
Long Service Life
Premium construction is suited for demanding repeat-cycle production environments.
Available Constructions
Choose the right
belt surface.
Common Applications
Built for focused
industrial use cases.
Premium PTFE coated fiberglass belts are used where release, heat resistance, chemical resistance, and long-term belt performance are important.
Product Values
Premium PTFE coated fiberglass belting
products and specifications.
Compare premium smooth and premium textured PTFE coated fiberglass belt products by thickness, coated weight, tensile strength, and tear strength.
Product numbers link to individual product pages with additional information and data sheets.
| Product Page | Nominal Thickness (Inches) | Coated Weight (lbs/sq yd) | Tensile Strength Warp/Fill (lbs/inch) | Tear Strength Warp/Fill (lbs) |
|---|---|---|---|---|
| Premium Smooth | ||||
| 8039 | 0.003 | 0.28 | 75 / 70 | 3.25 / 2.5 |
| A952 | 0.0031 | 0.30 | 92 / 62 | 2.1 / 0.97 |
| TL-7100 | 0.0075 | 0.71 | 185 / 145 | 12.5 / 8.0 |
| 8109 | 0.001 | 1.00 | 300 / 175 | 10.0 / 8.0 |
| A1139 | 0.0105 | 1.00 | 270 / 165 | 10.5 / 6.0 |
| A1048 | 0.0245 | 2.16 | 565 / 545 | 18.0 / 17.0 |
| Premium Textured | ||||
| 8279 | 0.027 | 2.04 | 440 / 520 | 25.0 / 15.0 |
The data herein are averages based on the authoritative testing of several lot numbers. This information is intended for comparison purposes only.
Belting FAQ
Common questions about
premium PTFE belting.
What is premium PTFE belting used for?
Premium PTFE belting is used for high-temperature conveying, heat sealing, release, packaging, food processing, and industrial production applications.
What is the difference between premium smooth and premium textured belting?

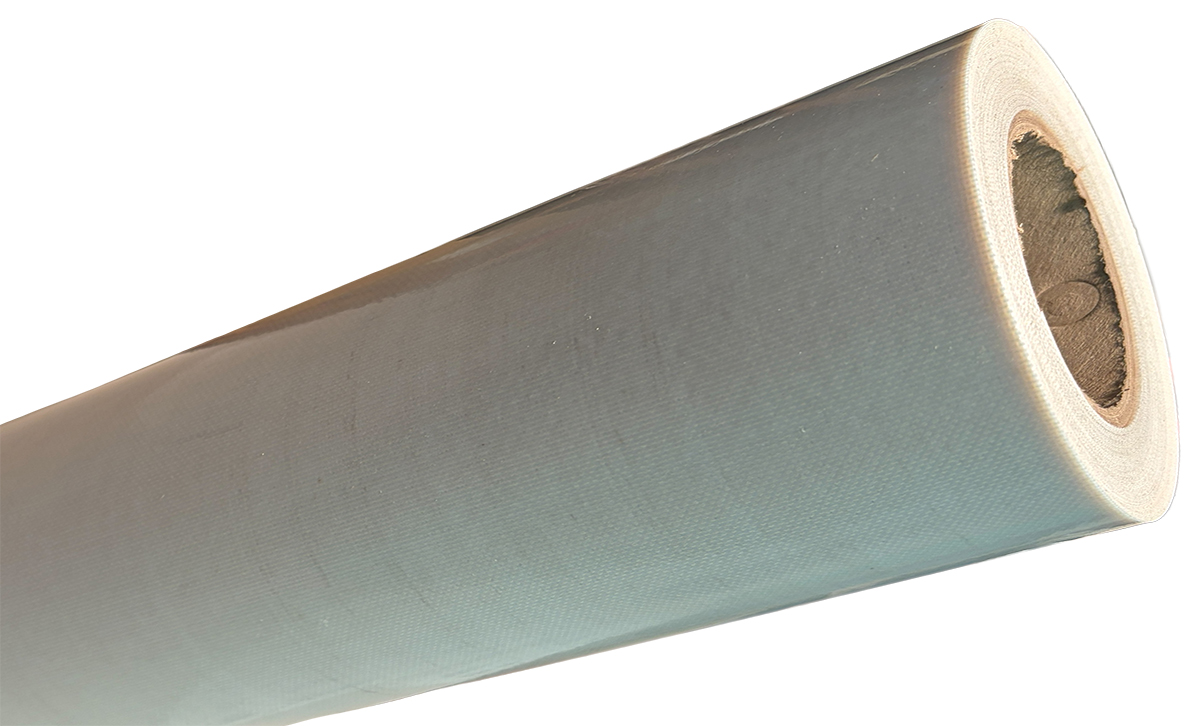

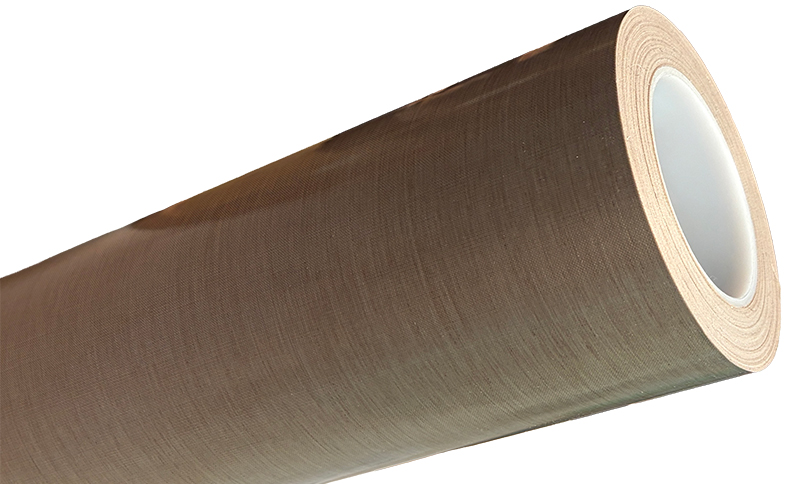

Premium smooth belting provides a cleaner release surface, while premium textured belting adds surface profile for traction or process-specific contact.
Why choose premium instead of standard PTFE belting?
Premium belting is selected when the application needs heavier PTFE coating, stronger release, and improved durability.
Need help selecting a belt?
Taconic can help match belt material, surface texture, splice type, edge reinforcement, and operating conditions to your application.
