Products » 8039
Heavy Weight Belting

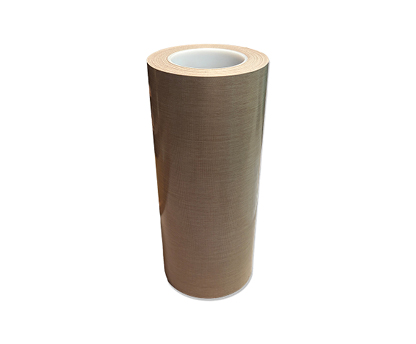

Taconic's 8039 is a 3 mil PTFE coated fiberglass fabric complete with a premium coated weight of PTFE. This material exhibits release properties, heat resistance, chemical resistance, and allows for good heat transfer.
Common applications include heat sealing/poly packaging, tray lining, composite release liners, gaskets and seals, and a variety of aerospace applications. Maximum width is 61.5” wide.
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 61.5 |
| Nominal Thickness (inches): | 0.003 |
| Coated Weight (lbs/sq yd): | 0.28 |
| Dielectric Breakdown (volts/mil): | 900 |
| Tensile Warp: | 75 |
| Tensile Fill: | 70 |
| Tear Warp: | 3.25 |
| Tear Fill: | 2.5 |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 500 |
