Standard Grade Fabric
Standard Grade
PTFE Coated
Fiberglass
Fabric

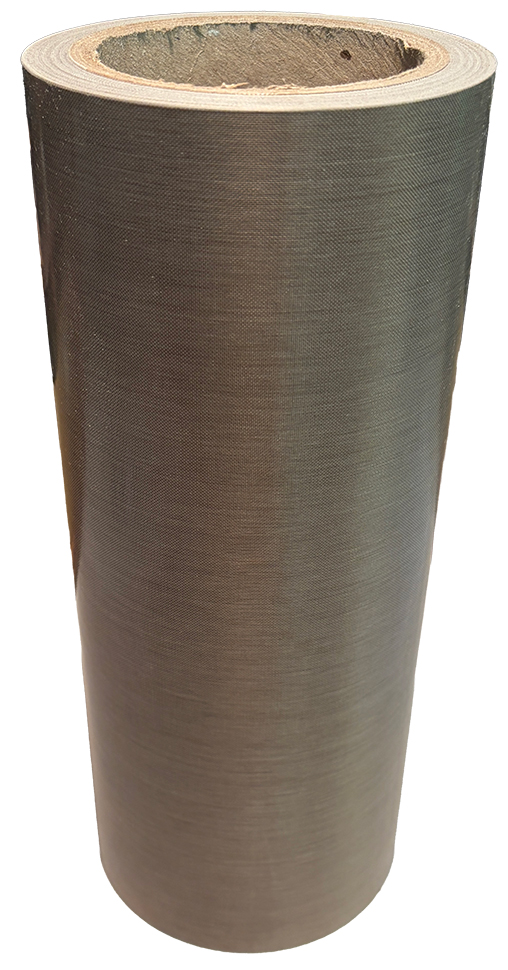

Taconic standard grade PTFE coated fiberglass fabric offers a practical balance of release performance, dimensional stability, heat resistance, and cost efficiency for general industrial processing applications.
These PTFE coated fabrics are widely used where a smooth non-stick surface and dependable performance are required, but the application does not require the heavier PTFE coating of premium grade materials.

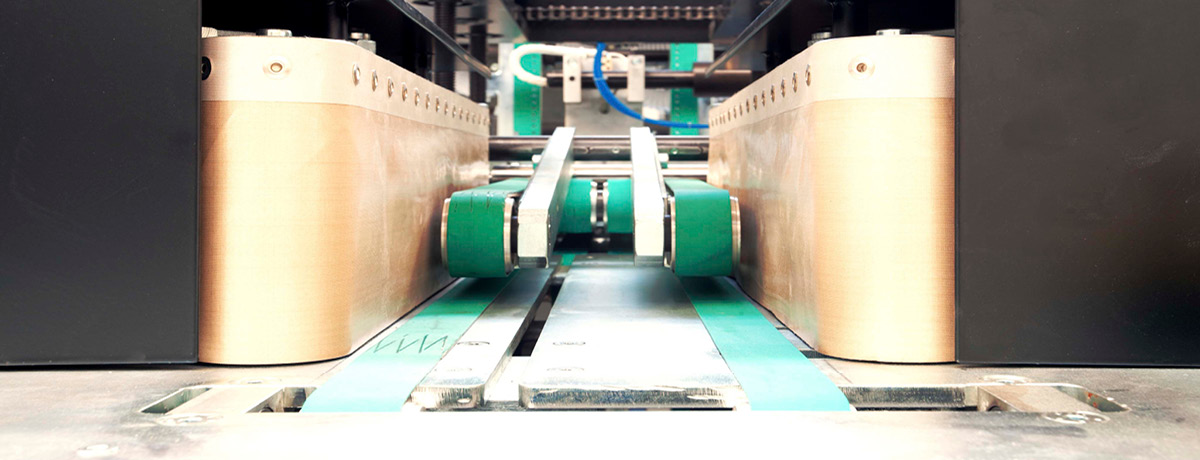

Use this fabric category for packaging, heat sealing, food processing, release surfaces, lamination, conveyor belting, and fabricated industrial components.
Performance Advantages
Why choose this
fabric construction?
Balanced Performance
Provides a strong balance of release, durability, dimensional stability, and cost efficiency for general industrial use.
Smooth Release Surface

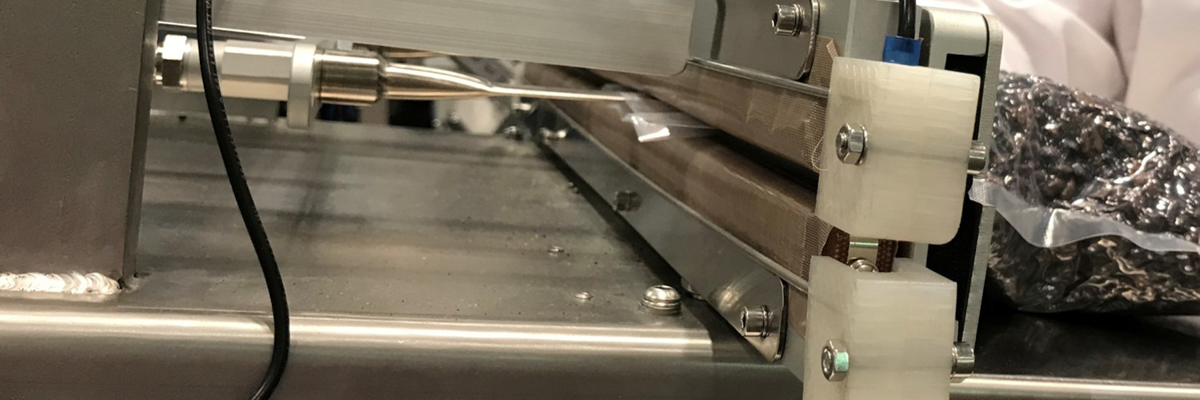

PTFE coating creates a smooth non-stick surface for heat sealing, packaging, lamination, and release applications.
Cost Effective
Standard grade fabric is a practical choice when dependable performance is needed without premium grade coating levels.
Versatile Use
Supports a wide range of industrial applications including release surfaces, fabricated parts, belting, and protective materials.
Common Applications
Built for focused
industrial use cases.
Standard grade PTFE coated fiberglass fabrics are used where release, heat resistance, dimensional stability, and cost-effective performance support everyday industrial production.
Product Values
Standard grade PTFE coated fiberglass fabric
products and specifications.
Compare available standard grade PTFE coated fiberglass fabric products by thickness, coated weight, tensile strength, tear strength, dielectric performance, FDA compliance, and maximum width. Product numbers link to individual product pages where available.
| Product Page | Nominal Thickness (Inches) | Total Coated Weight (lbs/sq yd) | Tensile Strength Warp/Fill (lbs/inch) | Tear Strength Warp/Fill (lbs) | Dielectric Breakdown (volts/mil) | FDA Compliant | Max Width (Inches) |
|---|---|---|---|---|---|---|---|
| 7038 | 0.0028 | 0.26 | 95/70 | 3.25/2.5 | 1000 | Y | 61.5 |
| 7048 | 0.0038 | 0.38 | 100/70 | 4.0/1.0 | 840 | Y | 38 |
| 7058 | 0.0045 | 0.44 | 175/155 | 6.25/6.25 | 975 | Y | 62 |
| 7068 | 0.0056 | 0.56 | 165/150 | 6.25/6.25 | 1100 | Y | 62 |
| 7108 | 0.009 | 0.92 | 285/185 | 12.0/7.0 | 600 | Y | 62 |
| 7148 | 0.0135 | 1.35 | 400/300 | 15.0/15.0 | 350 | Y | 104 |
| 7208 | 0.020 | 1.52 | 375/355 | 17.0/15.0 | 240 | Y | 140 |
| 7278 | 0.0255 | 1.83 | 400/500 | 25.0/20.0 | 170 | Y | 181 |
The data herein are averages based on the authoritative testing of several lot numbers. This information is intended for comparison purposes only.
Fabric FAQ
Common questions about
standard grade fabric.
What is standard grade PTFE coated fiberglass fabric used for?
Standard grade PTFE coated fiberglass fabric is used for general release, heat sealing, packaging, lamination, food processing, conveyor belting, and other industrial applications.
How does standard grade compare to premium grade PTFE fabric?
Standard grade offers dependable release and heat resistance at a balanced cost, while premium grade uses a heavier PTFE coating for more demanding applications.
Is standard grade PTFE fabric available in FDA compliant options?
Yes. Select standard grade products are FDA compliant, as shown in the product chart.
Need help selecting a fabric?
Taconic can help match thickness, release performance, airflow, FDA compliance, tensile strength, and coating type to your application.
