Economy Grade Fabric
Economy Grade
PTFE Coated
Fiberglass
Fabric

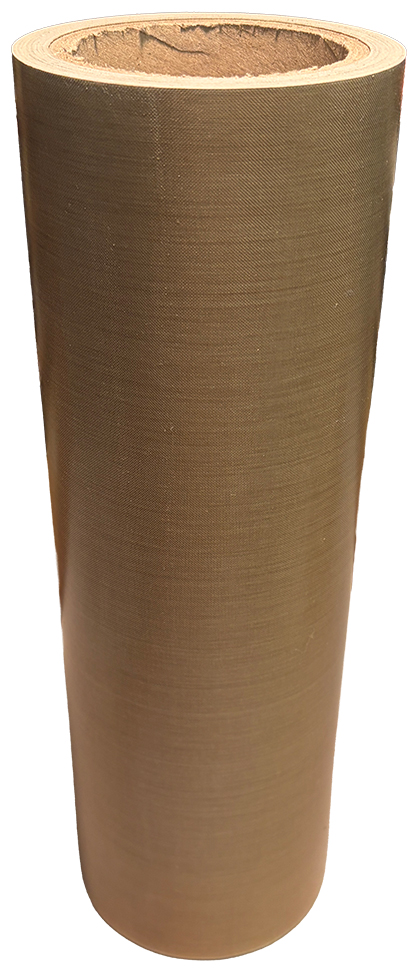

Taconic economy grade PTFE coated fiberglass fabric is designed for applications requiring practical PTFE coated fabric performance with strong cost efficiency and lightweight construction.
These lightweight coated fiberglass fabrics support general release, protection, and industrial processing applications where high-volume use or lower-cost material selection is important.
Economy grade PTFE coated fiberglass fabric is commonly used for temporary release surfaces, process aids, industrial covers, fabricated components, and applications where premium release performance is not required.
Performance Advantages
Why choose this
fabric construction?
Cost Efficient
An economical PTFE coated fiberglass fabric option for high-volume applications and cost-sensitive industrial environments.
Lightweight Construction
A lighter PTFE coating supports flexible handling and practical industrial performance where heavy coatings are unnecessary.
General Release
Provides useful non-stick release properties for temporary surfaces, covers, process aids, and general fabrication.
High Volume Use
Well suited for industrial applications where large material usage and economical material selection are important.
Common Applications
Built for focused
industrial use cases.
Economy grade PTFE coated fiberglass fabrics are used where practical release performance, lightweight construction, and lower material cost support everyday industrial production.
Product Values
Economy grade PTFE coated fiberglass fabric
products and specifications.
Compare available economy grade PTFE coated fiberglass fabric products by thickness, coated weight, tensile strength, tear strength, dielectric performance, FDA compliance, and maximum width. Product numbers link to individual product pages where available.
| Product Page | Nominal Thickness (Inches) | Total Coated Weight (lbs/sq yd) | Tensile Strength Warp/Fill (lbs/inch) | Tear Strength Warp/Fill (lbs) | Dielectric Breakdown (volts/mil) | FDA Compliant | Max Width (Inches) |
|---|---|---|---|---|---|---|---|
| 7036 | 0.0025 | 0.17 | 90/75 | 2.5/2.0 | 925 | N | 50 |
| 7056 | 0.0038 | 0.34 | 155/125 | 6.25/6.25 | 500 | N | 62 |
| 7106 | 0.0078 | 0.68 | 230/145 | 12.0/7.0 | 300 | N | 51.5 |
| 10-69-128 | 0.0085 | 0.70 | 230/185 | 18.0/12.0 | 280 | N | 44 |
| 7146 | 0.011 | 0.95 | 220/150 | 20.0/10.0 | 245 | N | 38 |
| 7226 | 0.0225 | 1.33 | 455/370 | 100.0/100.0 | 135 | N | 110 |
| 7356 | 0.034 | 2.1 | 650/650 | 50.0/60.0 | 100 | N | 72 |
The data herein are averages based on the authoritative testing of several lot numbers. This information is intended for comparison purposes only.
Fabric FAQ
Common questions about
economy grade fabric.
What is economy grade PTFE fabric used for?
Economy grade PTFE fabric is used for general release, covers, process aids, and applications where cost efficiency is a major priority.
How is economy grade different from standard grade?
Economy grade uses a lighter PTFE coating, while standard grade provides a stronger balance of release performance, smoothness, and durability.
Is economy grade fabric suitable for demanding release applications?
For the most demanding release applications, premium or standard grade PTFE fabric is typically a better choice.
Need help selecting a fabric?
Taconic can help match thickness, release performance, airflow, FDA compliance, tensile strength, and coating type to your application.
