Industrial Heat Sealing Equipment
Heat Sealing
Irons & Tools
Taconic industrial heat sealing irons allow manufacturers to perform in-house PTFE belt patching, welding, splicing, and repairs directly at their facility. Designed for demanding industrial environments, these handheld heat sealing systems help reduce downtime, improve maintenance response times, and extend belt life.
Available in multiple platen sizes with digitally controlled temperature systems, Taconic heat sealing irons support PTFE coated fiberglass belt splicing, reinforcement installation, patching, and field repairs across food processing, packaging, laminating, textile, converting, and industrial conveyor applications.
Built for Industrial Belt Splicing
Perform belt repairs and
splicing in-house.
Taconic handheld heat sealing irons are designed to simplify industrial PTFE belt splicing, patching, reinforcement installation, and maintenance procedures. By allowing repairs directly on-site, manufacturers can reduce service delays, minimize production interruptions, and maintain consistent belt performance without sending equipment out for repair.
Available Options
Industrial heat sealing tools
for PTFE belt repair.
Digitally Controlled
Select models feature adjustable temperature control up to 750°F / 399°C for consistent sealing performance.
In-House Repairs
Reduce downtime and maintenance costs by performing PTFE belt splicing and patching directly at your facility.
Thermal Insulation Pads
Conformable reusable pads help maintain even pressure and support clean welds on flat and non-planar surfaces.
Custom Solutions
Custom insulation pad sizes and release cloth options are available to support application-specific repair requirements.
|
Product |
Platen Size | Weight | Temperature | Voltage | Primary Use |
|---|---|---|---|---|---|

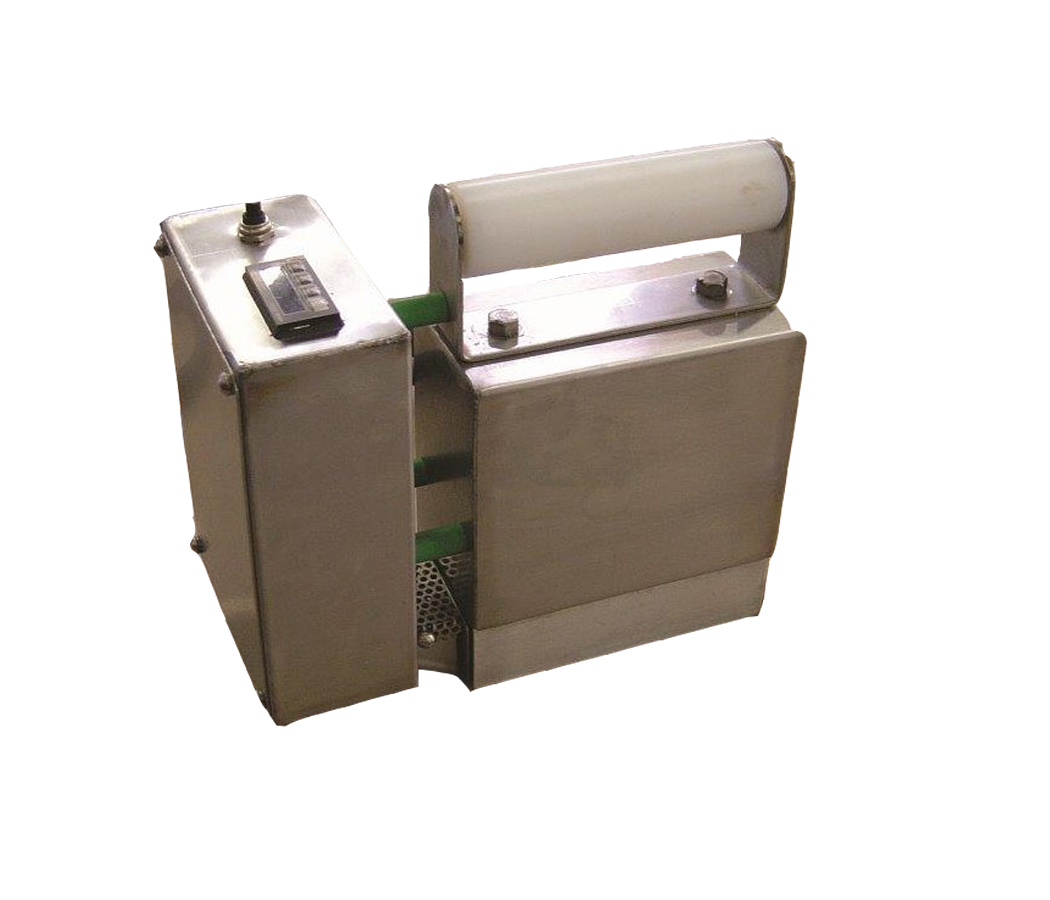

| 3" x 6" Handheld Iron | 3" x 6" | 17 lbs | Up to 750°F / 399°C | 120V or 220V | General belt splicing |

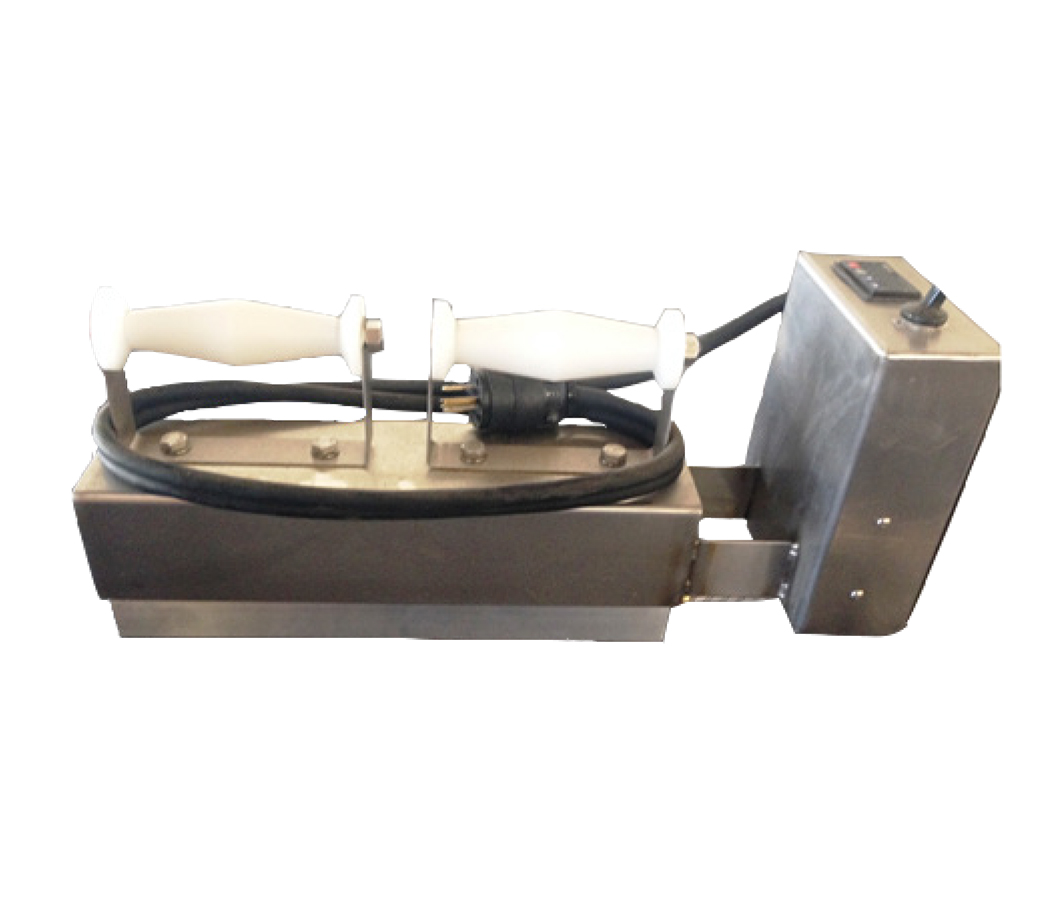

| 3" x 12" Handheld Iron | 3" x 12" | 20 lbs | Up to 750°F / 399°C | 120V | Large splice areas |

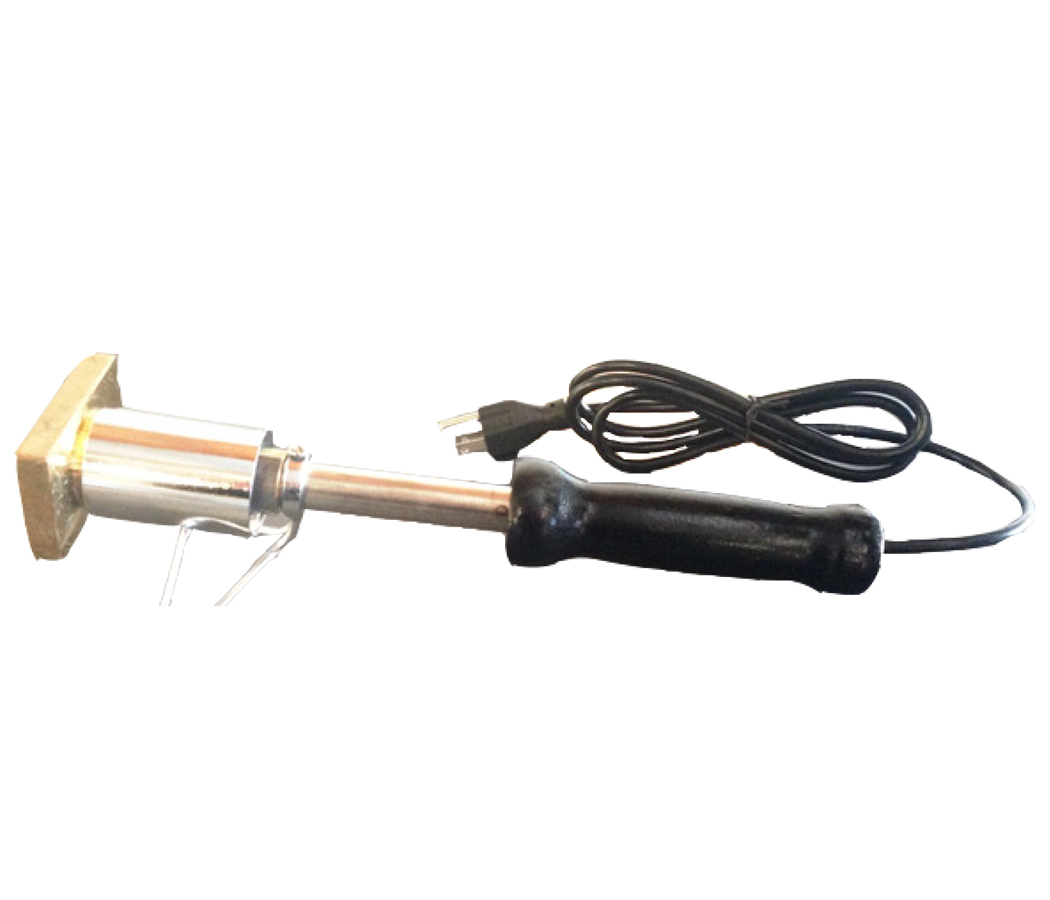

| 2" x 3" Patching Iron | 2" x 3" | 4 lbs | 750+°F / 399+°C | 120V | Small repairs & patches |

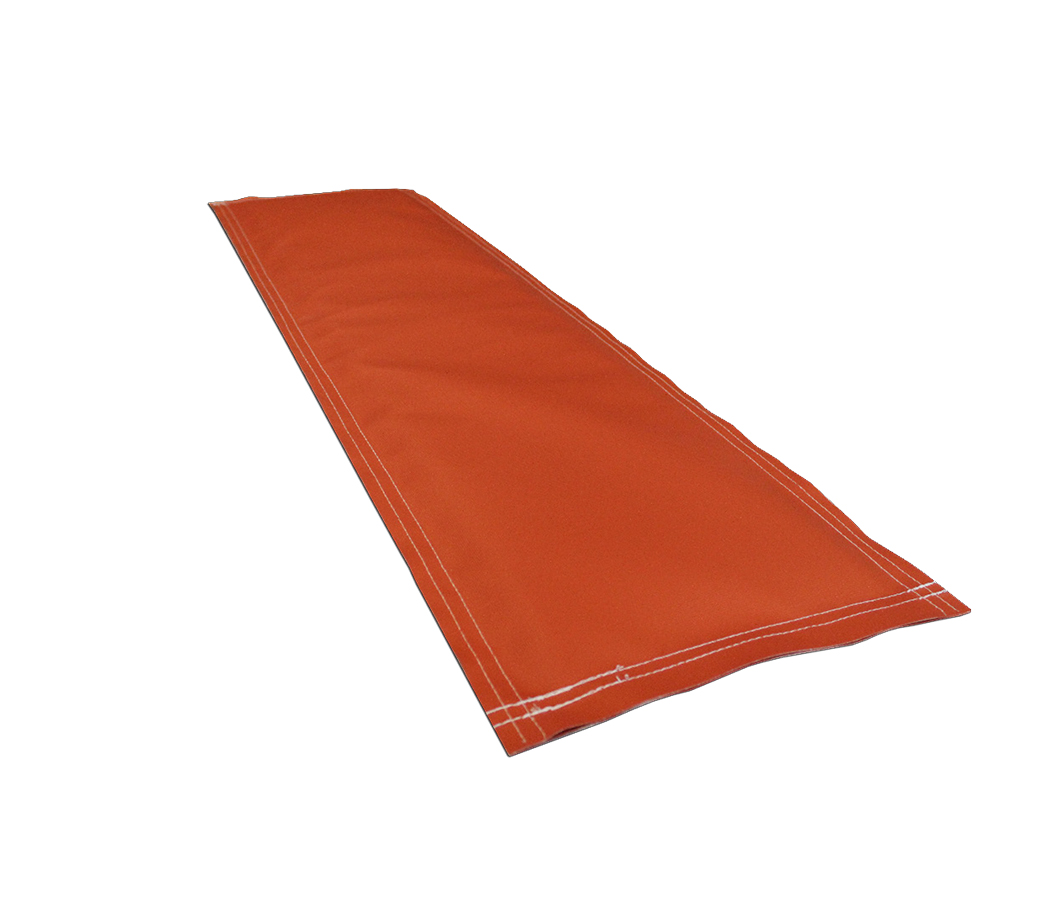

| Thermal Insulation Pad | Custom Sizes | N/A | Up to 500°F / 260°C | N/A | Support during welding |
Available specifications and voltage configurations may vary by application and region.
Heat Sealing Procedure
Basic PTFE belt
splicing process.
Required Materials
- Heat Sealing Iron
- Release Cloth / Film
- Heat Resistant Padding
- Reinforcement Material
- Straight Edge
- Tape Measure
- Cutting Surface
- Large C-Clamps
- Isopropyl Alcohol
- Cloth & Cleaning Supplies
Key Process Steps
- Clean and prepare the splice area.
- Clamp and tension the belt.
- Trim and align overlap sections.
- Insert insulation padding and reinforcement.
- Cover with release cloth or film.
- Heat seal in overlapping passes.
- Inspect for voids and weak welds.
- Allow cooling prior to tensioning.
Industrial Belt Maintenance
Need help selecting the right
heat sealing system?
Taconic can help identify the proper handheld iron size, reinforcement materials, insulation pads, release cloths, and sealing procedures for your PTFE belt repair and installation application.
