PTFE Coated Tape, Fabric & Sleeves
PVC Welding
Without the Stick.
Taconic manufactures PTFE coated tapes, fabrics, and fabricated sleeves for PVC window and door welding applications where clean release, high heat resistance, and long service life are critical.
Our materials cover heated welding plates, allowing heat to form strong joint welds while preventing hot PVC from sticking to the platen surface. The result is cleaner welds, faster changeovers, reduced downtime, and more consistent window and door production.
Application Overview
Hot plates. Clean welds.
Less fight from the PVC.

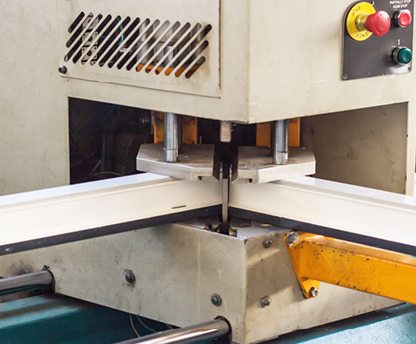

During PVC window and door frame fabrication, heated plates melt the angled edges of vinyl extrusions before the profiles are pressed together to form the final joint.
Taconic PTFE coated materials act as a durable nonstick barrier between the heated platen and the PVC profile, helping operators maintain cleaner plate surfaces, reduce sticking, and improve weld consistency.
Performance Advantages
Everything the plate needs.
Nothing the PVC can hold onto.
Superior Release
PTFE coated surfaces help prevent hot PVC from sticking to heated plates during the welding cycle.
500°F Resistance
Materials are designed for high-temperature environments up to 500°F / 260°C.
Abrasion Resistance
Durable constructions help resist wear, abrasion, cut-through, and punctures in repetitive production.
Easy Cleaning
Nonstick surfaces help reduce cleanup time and support cleaner, more efficient frame production.
Product Options
Good. Better. Best.
Every shift has options.
Taconic offers multiple PTFE tape and fabric grades for PVC welding operations, from cost-effective standard materials to premium options designed for improved efficiency and extended usable life.
Product Data
Compare the lineup.
Choose your release point.
PVC welding operations can choose from tape and fabric constructions based on thickness, coated weight, strength, adhesive performance, and operating temperature requirements.
| Grade | Type | Product | Thickness | Adhesive | Coated Weight | Tensile Strength | Tear Strength | Adhesive Strength |
|---|---|---|---|---|---|---|---|---|
| Good | Tape | 6085-05 | 0.007 in | 0.002 in | N/A | - | - | 45 oz/in |
| Fabric | 7058 | 0.0045 in | N/A | 0.44 lbs/sq yd | 175 / 155 lbs/in | 6.25 / 6.25 lbs | N/A | |

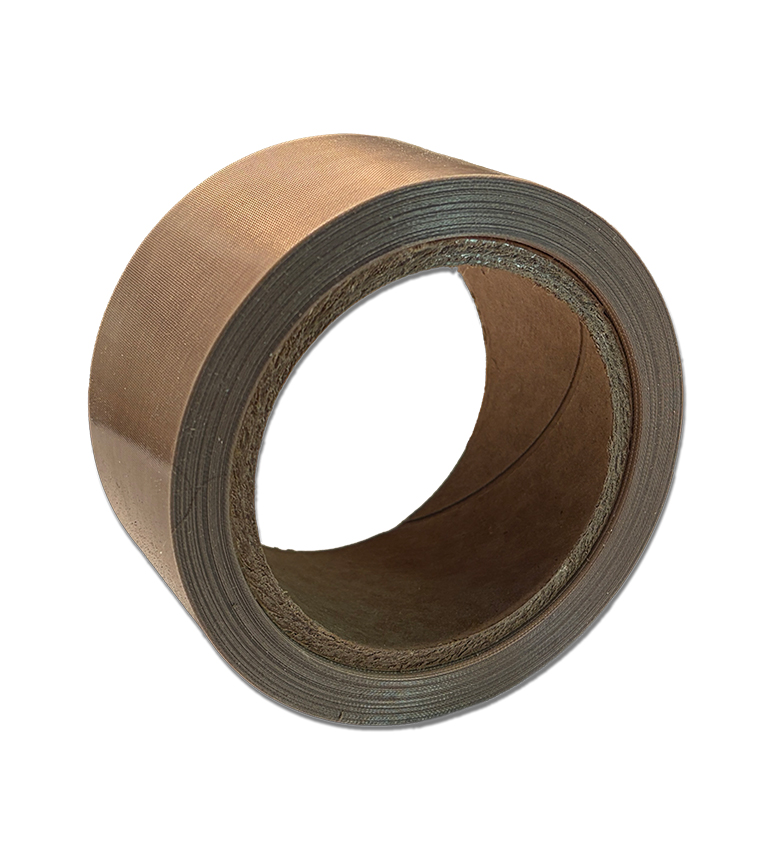

| Better | Tape | 6095-06 | 0.008 in | 0.002 in | N/A | - | - | 50 oz/in |
| Fabric | 7069 | 0.006 in | N/A | 0.6 lbs/sq yd | 165 / 150 lbs/in | 6.25 / 6.25 lbs | N/A | |

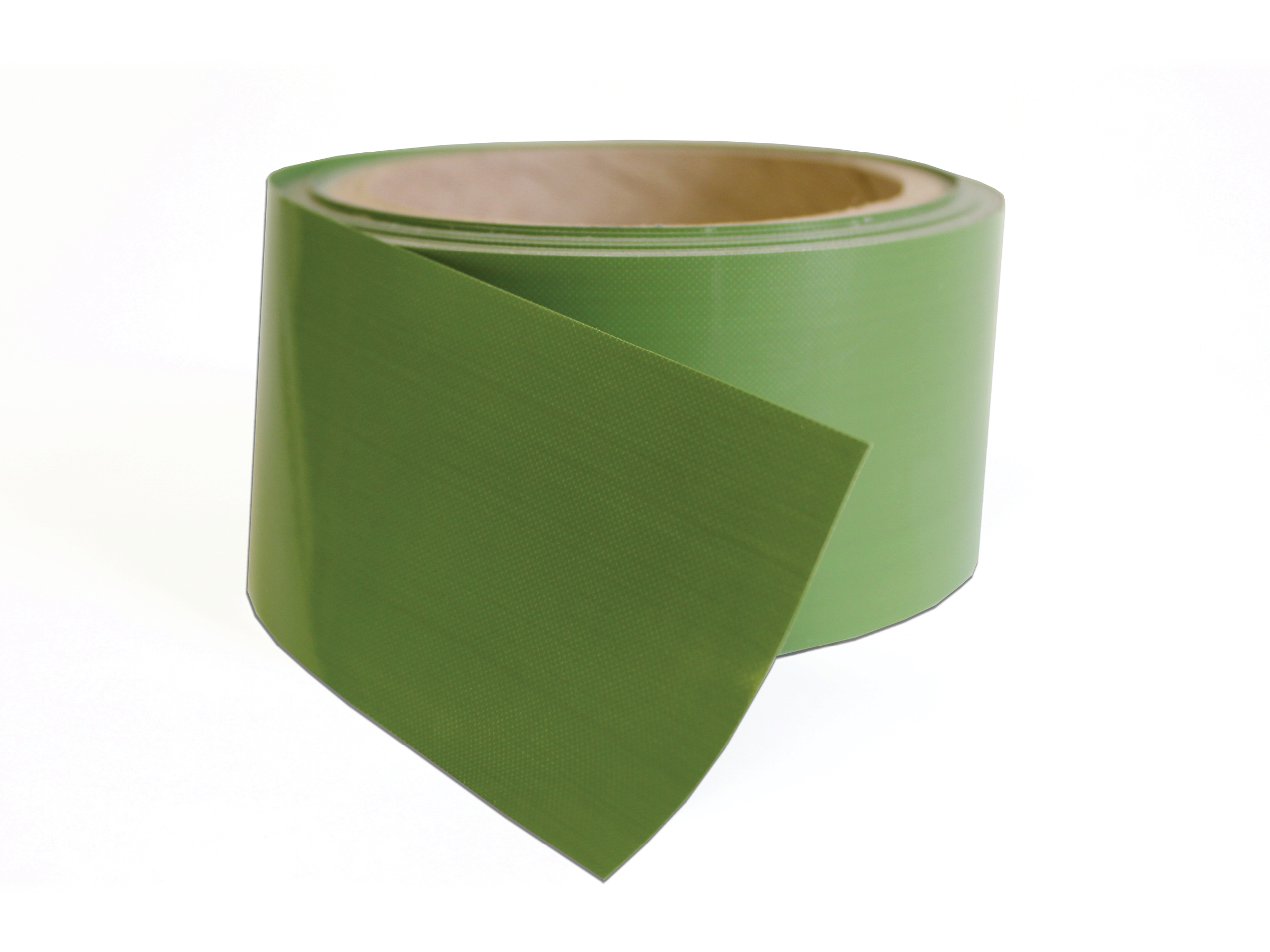

| Best | Tape | 6095-06-TW-GHT | 0.008 in | 0.002 in | N/A | - | - | 55 oz/in |

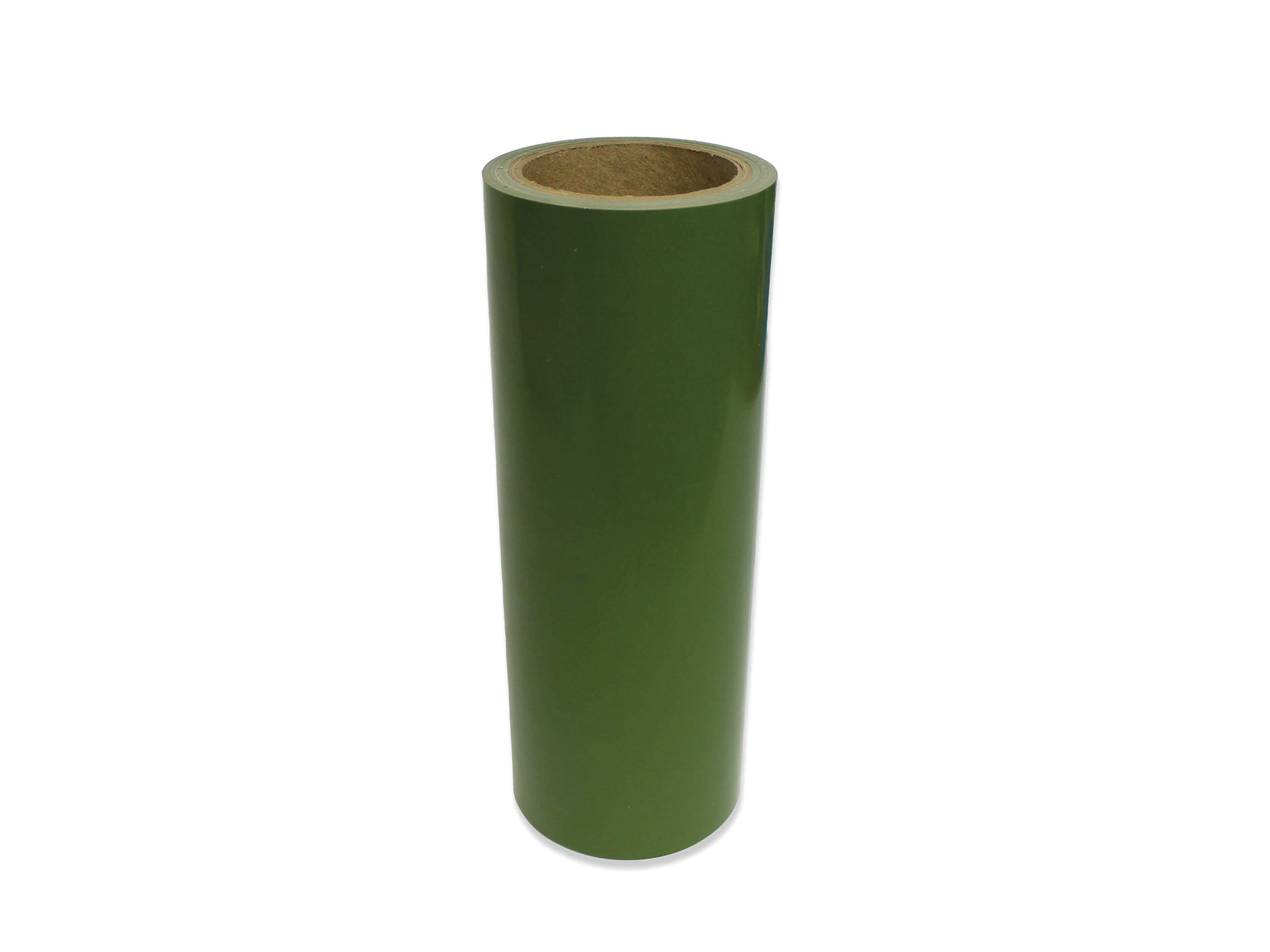

| Fabric | 7069-TW-GRN | 0.006 in | N/A | 0.6 lbs/sq yd | 175 / 150 lbs/in | 6.0 / 5.75 lbs | N/A |
The data herein are averages based on authoritative testing of multiple lot numbers. This information is intended for comparison purposes only.
Premium Grade Products
Less downtime.
More windows and doors.
Taconic premium grade PVC welding products are designed to help improve overall production efficiency through reduced material consumption, less cleanup, and fewer interruptions at the machine.
Available Formats
The right coverage
for your welding plates.
Production Benefits
Better welds.
Fewer interruptions.
Taconic PVC welding materials are designed to help manufacturers improve quality, reduce maintenance time, and keep frame production moving with less sticking, less cleanup, and less downtime.
PVC Welding Support
Keep the heat where it belongs.
Keep the PVC moving.
Whether you need PTFE tape, coated fabric, fabricated sleeves, or help identifying the best grade for your welding equipment, Taconic can help you find the right solution for cleaner welds and more efficient production.
