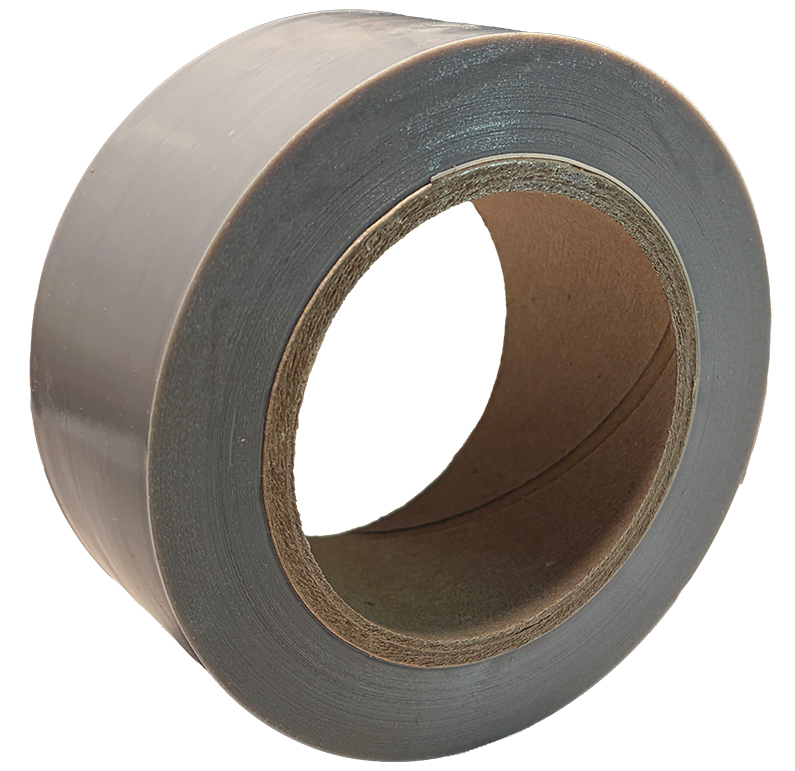

Skived PTFE Film Tapes
Skived
PTFE Film
Tapes
Taconic skived PTFE film tapes are engineered for applications that require a smooth PTFE film surface, high dielectric performance, conformability, chemical resistance, and dependable release properties in demanding industrial environments.
These skived PTFE adhesive tapes are effective in electrical insulation, wrapping, lining, surface protection, and applications where elongation and conformability help the tape follow complex surfaces.
Available with silicone and acrylic adhesive systems, Taconic skived PTFE film tapes provide versatile performance for applications where a thin, flexible PTFE film construction is preferred.
Performance Advantages
Why choose
skived ptfe film
adhesive and masking
tapes?
Excellent conformability
Skived PTFE film offers high elongation, helping the tape conform to curved, irregular, or detailed surfaces during masking, lining, and protection.
High dielectric performance
PTFE film construction supports applications where electrical insulation, dielectric strength, and consistent material performance are important.
Smooth PTFE film surface
The smooth PTFE film surface provides non-stick release, low friction, and clean performance in masking, wrapping, and process protection applications.
Silicone and acrylic adhesive options
Multiple adhesive systems allow the tape construction to be matched to temperature range, adhesion needs, surface type, and process environment.
Common Applications
Built for focused
industrial tape applications.
Skived PTFE film tapes are used where conformability, high dielectric properties, clean release, and chemical resistance help protect components, production equipment, and critical process surfaces. masking, and demanding production environments.
Product Values
Available products
and specifications.
Compare available skived PTFE film tapes by total thickness, adhesive thickness, adhesive type, adhesive strength, operating temperature range, and maximum width.
| Product Page | Total Thickness (inches) |
Adhesive Thickness (inches) |
Adhesive Type | Adhesive Strength (oz/inch) |
Operating Temp Min/Max °F |
Max Width (inches) |
|---|---|---|---|---|---|---|
| 6115-03 | 0.005 | 0.002 | Silicone | 35 | -100/500 | 38 |
| 6115-05 | 0.007 | 0.002 | Silicone | 40 | -100/500 | 38 |
| 6115-10 | 0.012 | 0.002 | Silicone | 45 | -100/500 | 38 |
| 6113-03 | 0.005 | 0.002 | Acrylic | 45 | -40/350 | 38 |
| 6113-05 | 0.007 | 0.002 | Acrylic | 70 | -40/350 | 38 |
| 6113-10 | 0.012 | 0.002 | Acrylic | 70 | -40/350 | 38 |
The data herein are averages based on the authoritative testing of several lot numbers. This information is intended for comparison purposes only.
FAQ
Common questions about
skived ptfe film
adhesive and masking
tapes.
What are skived PTFE film tapes used for?
Skived PTFE film tapes are used for high-temperature masking, electrical insulation, lining, wrapping, surface protection, release surfaces, and applications where conformability and dielectric performance are important.
What makes skived PTFE film tape different?
Skived PTFE film tape uses a thin PTFE film backing rather than a fiberglass fabric backing. This gives it a smooth film surface, strong conformability, high elongation, and excellent dielectric properties.
Are skived PTFE film tapes available with different adhesives?
Yes. Taconic skived PTFE film tapes are available with silicone and acrylic adhesive systems depending on temperature range, adhesion requirements, surface type, and process conditions.
