PTFE Coated Fabrics & Belts
Flooring & Carpet
Manufacturing
Taconic PTFE coated fiberglass fabrics and belts act as nonstick, chemical resistant barriers between production machinery and the flooring or carpet product being manufactured.
Designed to reduce prep time, finish work, cleanup, and waste, Taconic materials help flooring and carpet manufacturers improve release, protect equipment, and support a consistent finished product.
Application Overview
Nonstick barriers
for demanding production lines.
Flooring and carpet manufacturing often requires materials to move through heat, pressure, curing, bonding, and release steps without sticking to equipment or collecting unwanted buildup.
Taconic PTFE coated fabrics and belts provide a durable release surface that helps protect machinery while supporting smoother processing of uncured synthetic rubber, PVC backing, woven fiber overlay, and other flooring components.
Performance Benefits
Cleaner processing.
Better finished surfaces.
Exceptional Release
PTFE coated surfaces help release sticky flooring materials from belts, fabrics, and machinery surfaces.
Chemical Resistance
Materials act as chemical resistant barriers between production equipment and flooring products.
Easy to Clean
Nonstick surfaces help reduce buildup and make cleanup faster between production runs.
Consistent Product Quality
Cleaner release and reduced waste help support a consistent, higher-quality finished product.
Product Options
Heavy-duty PTFE belts
for flooring production.

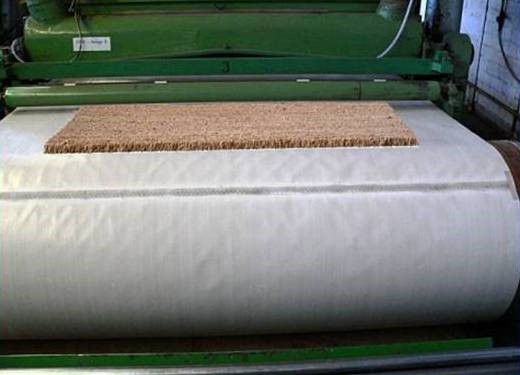

Taconic offers PTFE coated belt materials for conveying uncured synthetic rubber, PVC backing, and woven fiber overlay through curing chambers where materials are bonded.
A1048
PTFE coated belt material for flooring and carpet manufacturing applications requiring release and durability.
A1157
Heavy-duty PTFE coated construction for conveyor belt use in demanding curing and bonding operations.
A2157
High tensile strength PTFE coated belt material for applications needing additional mechanical performance.
8274
Durable PTFE coated conveyor belt option with strong tear strength for flooring production environments.
8278
PTFE coated belt material for consistent conveyance, release, and surface protection.
8279
PTFE coated belt option for flooring and carpet manufacturing lines requiring nonstick processing support.
Product Information
Compare belt materials
for flooring and carpet lines.
Product data for Taconic PTFE coated belt materials used in flooring and carpet manufacturing applications.
| Product | Overall Thickness (in) |
Coated Weight (lbs/sq yd) |
Tensile Strength Warp/Fill |
Tear Strength Warp/Fill |
Dielectric Strength (volts/mil) |
Operating Temp Min/Max °F |
Application |
|---|---|---|---|---|---|---|---|
| A1048 | 0.0245 | 2.16 | 565 / 545 | 18.0 / 17.0 | 175 | -100 / 500 | Conveyor belts to convey uncured synthetic rubber, PVC backing, and woven fiber overlay through a curing chamber where materials are bonded. |
| A1157 | 0.026 | 2.20 | 565 / 555 | 19.00 / 19.0 | 200 | -100 / 500 | |
| A2157 | 0.024 | 2.12 | 700 / 700 | 52.5 / 55 | 150 | -100 / 500 | |
| 8274 | 0.0254 | 1.83 | 450 / 625 | 60.0 / 80.0 | 135 | -100 / 500 | |
| 8278 | 0.0255 | 1.83 | 400 / 500 | 25.0 / 20.0 | 170 | -100 / 500 | |
| 8279 | 0.0265 | 2.04 | 440 / 520 | 25.0 / 15.0 | 200 | -100 / 500 |
The data herein are averages based on authoritative testing of several lot numbers. This information is intended for comparison purposes only. Contact Taconic for recommendations based on your flooring or carpet manufacturing process.
Ready to Improve Release?
Better flooring production starts with
the right PTFE belt.
Contact Taconic to discuss your flooring or carpet manufacturing process, release requirements, operating temperature, and belt performance needs.
