Products » 8305KAS
Open Mesh Belting - PTFE/Kevlar & Kevlar/Glass

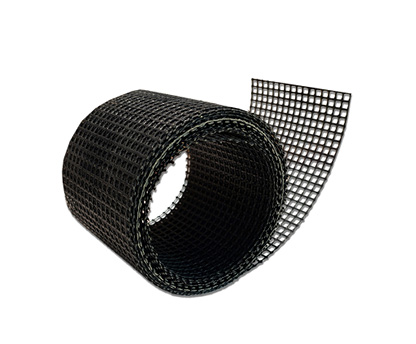

Taconic 8305KAS is a black, anti-static, 4mm open mesh PTFE coated aramid fabric. This fabric has excellent strength, mechanical stability, and excellent release and chemical compatibility.
This fabric is commonly used in high stress conveyor belt applications such as textile production and non-woven bonding applications.
Maximum width is 126”.
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 126 |
| Nominal Thickness (inches): | 0.035 |
| Coated Weight (lbs/sq yd): | 0.6 |
| Dielectric Breakdown (volts/mil): | NA |
| Tensile Warp: | 450 |
| Tensile Fill: | 350 |
| Tear Warp: | NA |
| Tear Fill: | NA |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 356 |
