Products » 8303

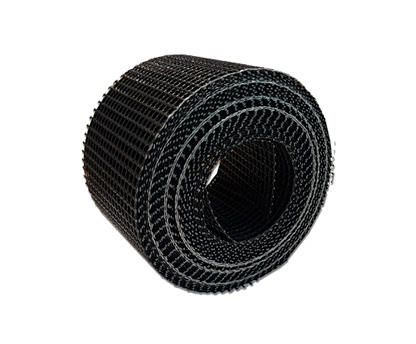

Open Mesh Belting - PTFE/Glass
Taconic 8303 is a standard 30 mil, Black colored open mesh PTFE coated fiberglass fabric. This fabric comes with ¼” square mesh openings to encourage good airflow. The mesh fabric has excellent heat resistance, UV Resistance, and good release properties.
Common applications are tray liners and open mesh belting (where airflow is advantageous).
Maximum width is 189” wide.
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 189 |
| Nominal Thickness (inches): | 0.035 |
| Coated Weight (lbs/sq yd): | 0.9 |
| Dielectric Breakdown (volts/mil): | NA |
| Tensile Warp: | 225 |
| Tensile Fill: | 225 |
| Tear Warp: | NA |
| Tear Fill: | NA |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 500 |
