Heavy Weight Belting

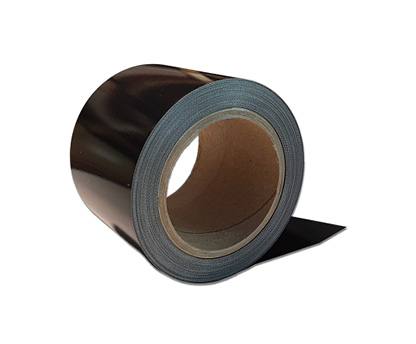

Taconic 8103 is a 10 mil Black pigmented PTFE coated fiberglass fabric. This material exhibits release properties, heat resistance, UV resistance, and chemical resistance. The black color also helps retain heat.
Common applications include plastic packaging, tray lining, gaskets and seals, and a variety of aerospace applications.
Maximum width is 38” wide.
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 38 |
| Nominal Thickness (inches): | 0.0095 |
| Coated Weight (lbs/sq yd): | 0.92 |
| Dielectric Breakdown (volts/mil): | 225 |
| Tensile Warp: | 335 |
| Tensile Fill: | 210 |
| Tear Warp: | 14 |
| Tear Fill: | 7 |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 500 |
