Products » 7305KG
Open Mesh Fabric → Kevlar® Glass Brown

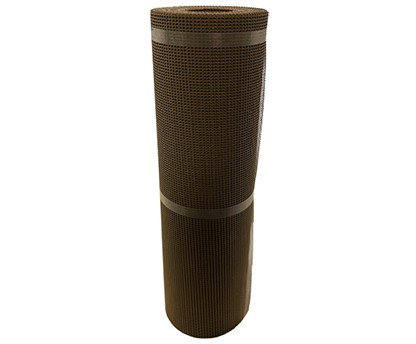

Taconic 7305KG is a 30 mil, Natural/Gold colored open mesh PTFE coated Kevlar and fiberglass fabric. This fabric comes with ¼” square mesh openings to encourage good airflow. The mesh fabric has excellent heat resistance and good release properties. The Kevlar & Glass combination fabric offers exceptionally high tensile strength.
Common applications involve conveyor belting applications where breaking strength and air flow are required.
Maximum width is 118” wide.
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 118 |
| Nominal Thickness (inches): | 0.035 |
| Coated Weight (lbs/sq yd): | 1.25 |
| Dielectric Breakdown (volts/mil): | NA |
| Tensile Warp: | 450 |
| Tensile Fill: | 600 |
| Tear Warp: | NA |
| Tear Fill: | NA |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 356 |
| Data Sheet: | Download Data Sheet (PDF) |
