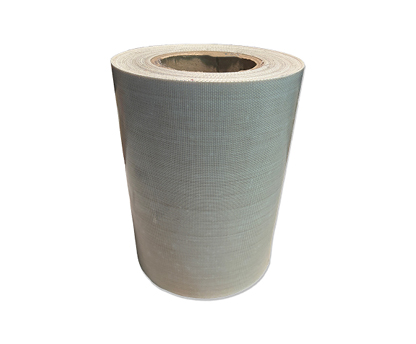

Mechanical Grade PTFE Glass Fabric
Taconic 7147 is a mechanical grade 14 mil PTFE coated fiberglass fabric. This material exhibits release properties, heat resistance, and chemical resistance.
Common applications include heat sealing/poly packaging, tray lining, wear stripping, gaskets and seals, and a variety of aerospace applications. Mechanical grade fabrics have a slightly lower PTFE coated weight compared with standard grade materials.
Maximum width is 38” wide.
Product Specifications
| FDA Compliant?: | |
|---|---|
| Standard Width (inches): | 38 |
| Nominal Thickness (inches): | 0.0119 |
| Coated Weight (lbs/sq yd): | 1.15 |
| Dielectric Breakdown (volts/mil): | 400 |
| Tensile Warp: | 265 |
| Tensile Fill: | 180 |
| Tear Warp: | 8 |
| Tear Fill: | 5 |
| Operating Temp Min (°F): | -100 |
| Operating Temp Max (°F): | 500 |
